XLY-660 High Speed Horizontal Type Automatic Pallet Strapping Machine

Machine description
Fully automatic horizontal strapping machine is a staple for pallets and other items on the packing operations carried out
automated packaging equipment,machine generally required for use with pallet strapping.The most important feature of this machine is without cargo moving up and down movement of the machine frame, thereby setting the corresponding position in the program will be packed to ensure the stability of bulk packaged goods.

INQUIRY

Product Details

Product Tags

Machine description

Fully automatic horizontal strapping machine is a staple for pallets and other items on the packing

operations carried out automated packaging equipment,machine generally required for use with

pallet strapping.The most important feature of this machine is without cargo moving up and down

movement of the machine frame, thereby setting the corresponding position in the program will be

packed to ensure the stability

of bulk packaged goods.

Machine parameters

Model	XLY-660
Strapping speed	2.5S/trap
Suitable for strap	PP / PET Strap
Width of pp strap	13-15mm
Thickness of pp strap	0.8-1.6mm
Arch size	Customize according to clients' requirements
Voltage	220/380V 50/60Hz 3Ph
Strapping force	120Kg(adjustable)

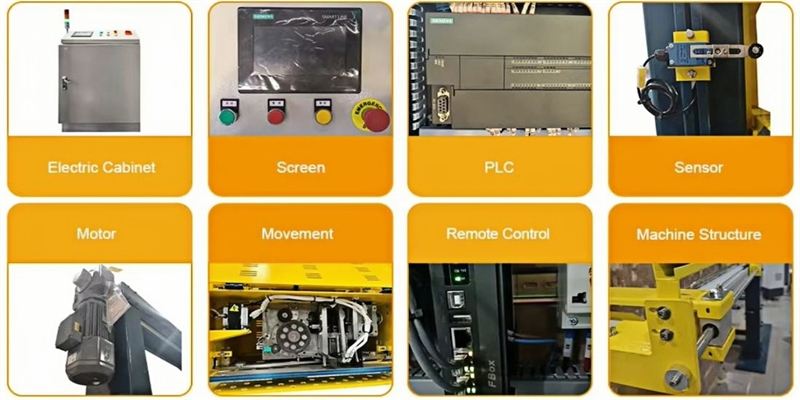

Machine Feature

1.PLC control system,touch screen of control panel;
2.With 5groups of strapping cycles number choice;
3.two straps distance can be automatic setting;
4.Pantograph safety anti-collision device to avoid collision with packages;
5.Automatic detection warning for strap not in place;
6.Automatic warning of strapping failure;
7.Automatic detection and warning of strap missing;
8.strap guide mechanism;
9.PP or PET straps are suitable;
10.Suitable for unmanned automatic packaging and conveying system;
