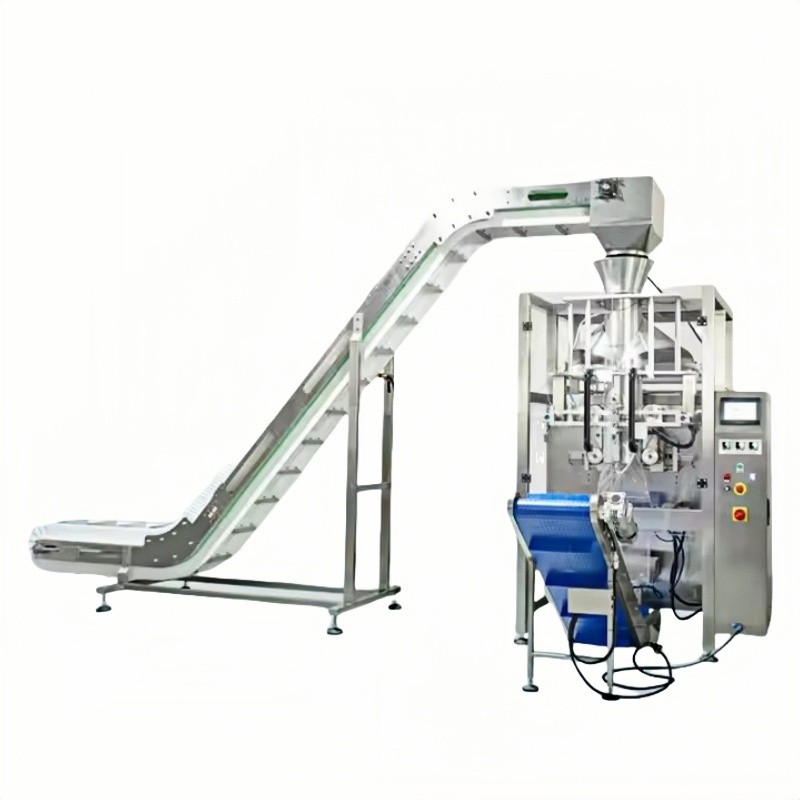

XLY-474 Granular Vertical Form Fill Seal Machine

Application
The machine is suitable for packing loose, non-adhesive, small granular materials in food, chemical and other industries, such as peanuts, popcorn, cornmeal, dried fruit, seed, small hardware, sugar, etc.

Product Details

Product Tags

Machine Feature

* Computerized touch screen, easy to adjust and operation, and easy to change products, with the

exception appearance system,easily and rapidly to repair;

* Could automatically to finish making bags, sealing, printing, and optional functions

* The advanced design ensures that it is very convenient for adjustment, operation, and maintenance

when different profession use it;

* It can support the use of various automatic metering equipment at home and abroad.


Machine parameters

Model XLY-474
Bag length 80-400mm
Bag width 80-300mm
Max. film width 620mm
Packing speed 20-40bags/min
Gas consumption 0.65m3/min
Air pressure 0.65Mpa
Power 220V 50HZ,single phase,4.5kw
Film material Complex film(OPP/CPP,OPP/PE,PET/PE etc)
Dimension L1860*W1400*H1880mm
Net weigth 710kg


Application

The machine is suitable for packing loose, non-adhesive, small granular materials in food, chemical

and other industries, such as peanuts, popcorn, cornmeal, dried fruit, seed, small hardware, sugar,

etc.
