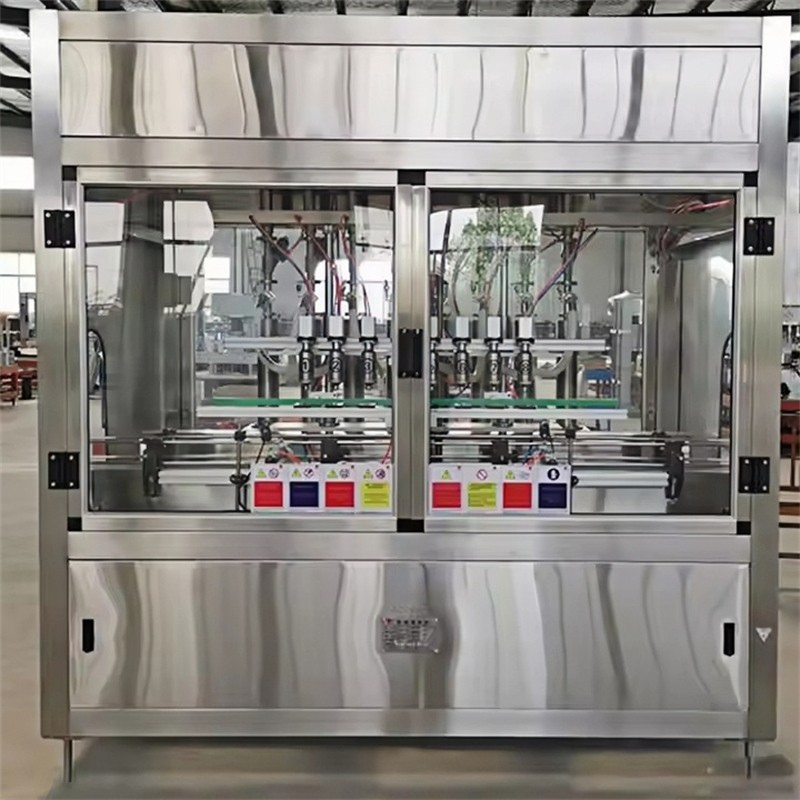

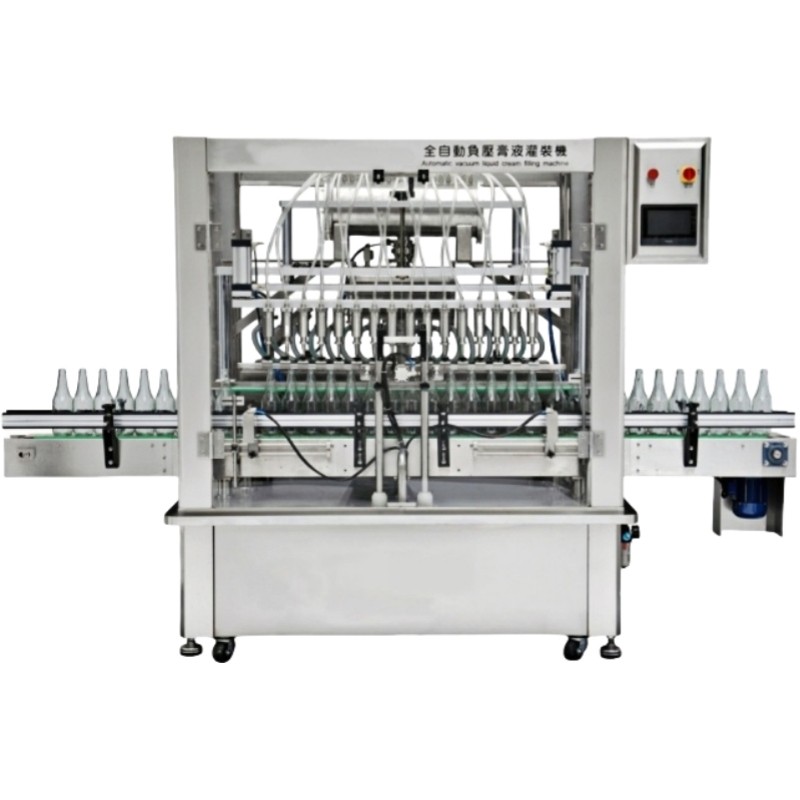

XLY-16 Automatic Negative Pressure Type Liquid Cream Filling Machine

Application
Suitable for the filling of liquids such as sauce, vinegar and beverage, and the filling of particle-bearing pasty materials such as chili sauce, tomato sauce and oyster sauce.

INQUIRY

Product Details

Product Tags

Feature

1.Advanced HMI operation, PLC control;

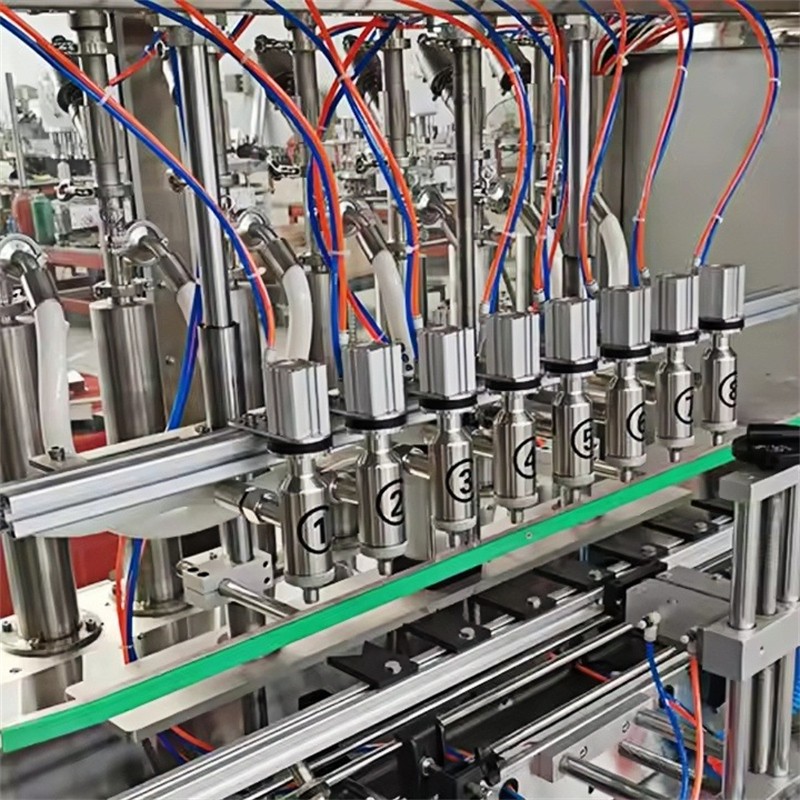

2.Vacuum negative pressure filling, compact, bubbling proof and dripping proof;

3.All material contact parts are made of 316L stainless steel, and surface is made of 304 stainless

steel, fully up to related food sanitation standard;

Machine parameters

Item	XLY-16
Filling range	80-500ml	500-2000ml
Filling speed	4000-5000瓶/小时bottles/h	2000-4000瓶/小时bottles/h
Filling precision	≦±3mm(Liquid level error)
	(liquid level error)
Bottle specification	瓶径Bottle diameterφ38-100mm
	瓶高Bottle heightφ65-260mm
Power	AC220V/50/60Hz 500W
Weight	850㎏
Pressure range	0.4-0.6Mpa
Host dimension	1750×1250×1945mm（Excluding conveyor length）
